Introduction to Electric Drives

Learning Objectives

By the end of this lecture, you will be able to:

  1. Define an electric drive system and identify its key components

  2. Explain the historical evolution from traditional to modern drive systems

  3. Compare the advantages and limitations of electric drives

  4. Classify electric drives based on their configuration

  5. Appreciate the role of power electronics in modern industrial applications

What is an Electric Drive?

Definition: Drive System

General Drive System A drive is a combination of:

Examples of Prime Movers

Definition: Electric Drive System

Electric Drive An electric drive system is a comprehensive system that uses an electric motor as the prime mover to convert electrical energy into controlled mechanical motion.

Key Characteristics Modern electric drives integrate:

Why Study Electric Drives?

Industrial Importance:

  • 60–70% of industrial electricity consumed by motors

  • Critical for automation and manufacturing

  • Essential for energy efficiency goals

  • Growing market in EVs and renewables

Engineering Skills:

  • Integration of multiple domains:

    • Power electronics

    • Electrical machines

    • Control systems

    • Mechanical engineering

  • Problem-solving for real applications

Career Relevance Electric drive engineers are in high demand in industries like automotive, aerospace, robotics, manufacturing, and renewable energy.

Historical Evolution of Drive Systems

The Era Before Power Electronics (Pre-1960s) Challenges with early motor control:

Technical Limitations:

  • Bulky and inefficient equipment

  • Very limited speed control methods

  • Poor dynamic response

  • High maintenance requirements

  • Noisy operation

Control Methods Used:

  • Resistance insertion (wasteful)

  • Autotransformers (bulky)

  • Complex multimachine systems

  • Ward-Leonard sets (expensive)

  • Mechanical clutches and brakes

Major Problem Motor selection was dictated by available power source, not by application requirements. Limited flexibility!

Ward-Leonard System: A Historical Milestone

Ward-Leonard system for DC motor speed control

How it worked:

  • AC motor drives DC generator

  • Generator output controls DC motor

  • Variable voltage \(\rightarrow\) variable speed

Drawbacks:

  • Very expensive (3 machines!)

  • Low efficiency (\(<\)60%)

  • Frequent maintenance

  • Large footprint

Historical Note Despite inefficiency, Ward-Leonard sets were the gold standard for precise DC motor control until the 1970s. Some legacy installations still exist today!

The Revolution: Power Electronics Era (1960s–Present) Key technological breakthroughs:

  1. 1960s–1970s: Thyristor-based converters

    • Phase-controlled rectifiers for DC drives

    • Cycloconverters for large AC drives

  2. 1980s–1990s: High-power transistors (BJT, MOSFET, IGBT)

    • PWM inverters for AC motor control

    • Variable frequency drives (VFDs) become affordable

  3. 2000s–Present: Digital control and integration

    • Microprocessors and DSPs

    • Advanced control algorithms (vector control, direct torque control)

    • Smart drives with built-in protection and diagnostics

Modern Electric Drive: The Complete Package

What Changed?

Economic Impact The transition from traditional drives to modern solid-state drives created a multi-billion dollar retrofitting industry in the US alone during the 1990s–2000s.

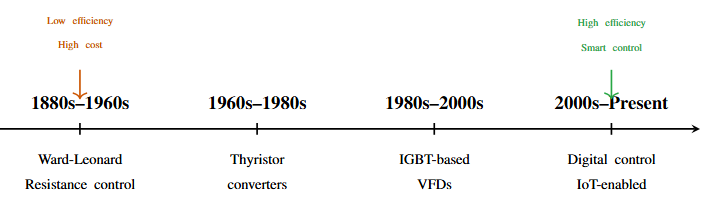

Timeline: Evolution of Electric Drives

Evolution of Electric Drives

The Trend

Advantages and Limitations

Advantages of Electric Drives

Flexibility & Performance:

  • Wide power range (mW to MW)

  • Wide torque-speed range

  • Four quadrant operation

  • Quick start/stop capability

  • Smooth speed control

  • High overload capacity

Efficiency:

  • High efficiency (90–95%+)

  • Regenerative braking possible

  • Energy savings in variable loads

Environmental & Safety:

  • Zero exhaust emissions

  • Low noise level

  • No hazardous fuel storage

  • Clean operation (food, pharma)

  • Safe in enclosed spaces

Maintenance & Economics:

  • Minimal servicing required

  • Long operational life

  • Gearless coupling option

  • Various design ratings

  • Lower total cost of ownership

Limitations of Electric Drives

Main Drawbacks

  1. Power Supply Dependency:

    • Require continuous electrical power supply

    • Grid dependence (not always available)

    • Backup power needed for critical applications

  2. Vehicle Propulsion Challenges:

    • Power supply equipment must be carried onboard

    • Battery systems add significant weight and bulk

    • Limited range compared to liquid fuels (energy density issue)

    • Long charging times (compared to refueling)

  3. Power-to-Weight Ratio:

    • Lower than internal combustion engines for high power

    • Due to iron saturation in magnetic circuits

    • Cooling requirements add weight

Electric vs. IC Engine: Quick Comparison

max width=

Parameter Electric Drive IC Engine
Efficiency 90–95% 25–40%
Torque at zero speed High Zero (needs clutch)
Speed control Excellent Limited
Emissions (local) Zero High
Noise Low High
Maintenance Minimal Frequent
Energy density Low (battery) High (fuel)
Cost (initial) Medium-High Medium

Conclusion Electric drives excel in efficiency, control, and environmental impact. IC engines have advantages in energy density and range for mobile applications.

Classification of Electric Drives

Classification Based on Configuration Three main types based on mechanical arrangement:

  1. Group Drive (Line Shaft Drive)

    • Single motor drives multiple loads through common shaft

    • Uses belts, pulleys, and mechanical couplings

    • Oldest form (late 1800s)

  2. Individual Drive

    • Single motor for single mechanism/machine

    • Most common configuration today

    • Direct or through single-stage transmission

  3. Multimotor Drive

    • Separate motor for each operation/axis

    • Coordinated control for complex tasks

    • Used in robotics, CNC machines, rolling mills

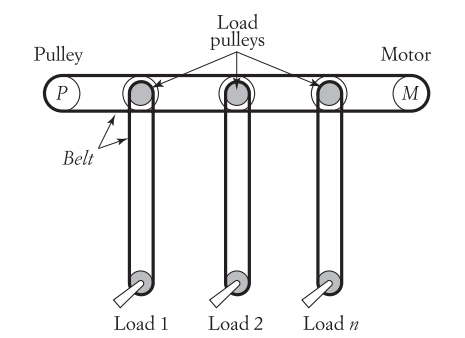

Group Drive (Line Shaft Drive)

Single-motor, multiple-load group drive system

Status Rarely used today – replaced by individual drives

Characteristics:

  • Oldest form (1880s–1920s)

  • Common in early factories

  • All machines run when motor runs

  • Multistepped pulleys for speed adjustment

Advantages:

  • Economical (one motor)

  • Lower initial cost

Disadvantages:

  • Low efficiency (40–50%)

  • Complete shutdown for servicing

  • Limited flexibility

  • Safety hazards

  • High noise level

Individual Drive

Dedicated motor for each machine/load

Common Applications Household appliances, pumps, compressors, fans, conveyors, elevators, single-axis machines

Characteristics:

  • One motor per machine

  • All operations of that machine performed by single motor

  • May use transmission (gears, belts)

  • Emerged in 1920s, dominant since 1950s

Advantages:

  • Higher efficiency (70–85%)

  • Independent operation

  • Easier maintenance

  • Better safety

  • Flexible layout

Multimotor Drive

Coordinated multi-axis motion control system

Applications Industrial robots, CNC machines, rolling mills, paper machines, printing presses, flight control systems

Characteristics:

  • Separate motor for each function/axis

  • Synchronized control system

  • Complex coordination required

  • Emerged with automation (1960s)

Advantages:

  • Optimum operation per axis

  • High precision

  • Flexible programming

  • Enables automation

Challenge:

  • Complex control algorithms

  • Higher cost

Case Study: Multimotor Drive in Robotics

6-Axis Industrial Robot:

  • Each joint has dedicated servo motor

  • Real-time coordination of all 6 motors

  • Position accuracy: \(\pm\)0.1 mm

  • Complex trajectory planning

Control Requirements:

  • Position feedback (encoders)

  • Current control (torque)

  • Speed synchronization

  • Path interpolation

  • Collision avoidance

Why Multimotor?

  • Each axis needs independent control

  • Varying load on each joint

  • Complex motion patterns

  • Impossible with single motor

Modern Trends:

  • Integrated motor + drive + encoder

  • EtherCAT communication

  • Distributed control

  • AI-based path optimization

Key Insight Multimotor drives enable automation and precision that was impossible with earlier drive configurations.

Comparison of Drive Configurations

max width=

Aspect Group Drive Individual Drive Multimotor Drive
Era 1880s–1920s 1920s–Present 1960s–Present
Efficiency 40–50% 70–85% 75–90%
Flexibility Very Low Medium Very High
Maintenance Difficult Easy Moderate
Initial Cost Low Medium High
Control Complexity Simple Simple Complex
Typical Power 10–100 kW 0.1–1000 kW 0.1–100 kW/motor
Current Usage Obsolete Dominant Growing

Selection Criteria Choose based on: application requirements, precision needs, flexibility, budget, and automation level.

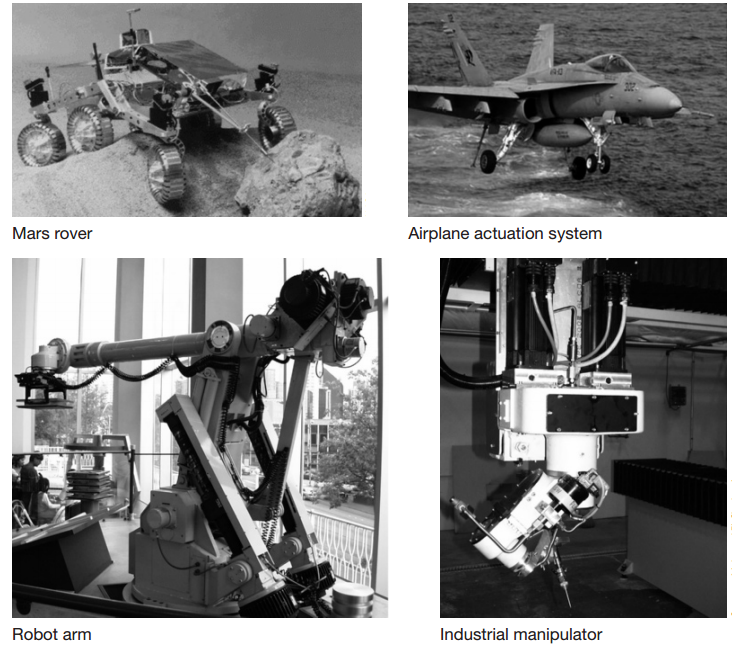

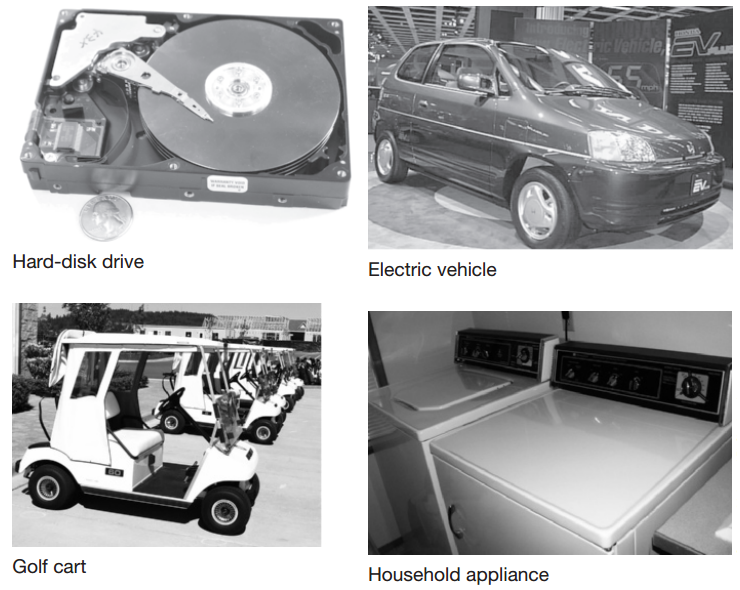

Modern Applications

Modern Applications of Electric Drives

Industrial:

  • Robotics and automation

  • Process control (chemical, pharma)

  • Manufacturing lines

  • Material handling

  • Textile machinery

  • Metal working (lathes, mills)

HVAC & Building:

  • Variable speed pumps

  • Fans and blowers

  • Compressors (chillers)

  • Elevators and escalators

Transportation:

  • Electric vehicles (cars, buses)

  • Railway traction

  • Marine propulsion

  • Airplane actuation (fly-by-wire)

  • Aerospace (satellites, rovers)

Consumer & Office:

  • Household appliances

  • Hard disk drives

  • Printers and copiers

  • Power tools

  • Drones

Everywhere! Electric drives are ubiquitous in modern life – from the phone vibrator motor to MW-scale industrial systems.

Case Study- Electric Vehicle Tesla Model 3 Drive System (Example):

Components:

  • Battery pack (400–800 V DC)

  • Inverter (DC to 3-phase AC)

  • Permanent magnet synchronous motor (PMSM)

  • Single-speed reduction gearbox

  • Electronic control unit (ECU)

Performance:

  • Power: 200–300 kW

  • Torque: 400–600 Nm

  • Efficiency: 90–95%

  • 0–100 km/h: \(<\)4 seconds

  • Regenerative braking

Why Electric Drive Wins Here:

  • High torque from zero speed (no clutch needed)

  • Smooth, continuous torque

  • Four-quadrant operation (regeneration)

  • Precise control (traction control, stability)

  • Quiet operation and zero local emissions

Challenges:

  • Battery weight and cost

  • Energy density vs. gasoline

  • Charging infrastructure

Trend Electric drives are rapidly replacing IC engines in transportation due to efficiency and environmental benefits.

Energy Savings Potential: A Real-World Example

Scenario: Industrial fan running 24/7, 100 HP (75 kW)

Traditional Control:

  • Motor runs at full speed

  • Flow control by damper/valve

  • Throttling wastes energy

  • Annual energy: 657,000 kWh

  • Cost @ $0.10/kWh: $65,700

With Variable Frequency Drive (VFD):

  • Motor speed adjusted to demand

  • Power \(\propto\) speed\(^3\) (fan law)

  • 20% speed reduction \(\rightarrow\) 50% power saving!

  • Annual energy: 328,500 kWh

  • Cost: $32,850

Return on Investment

The Role of Power Electronics

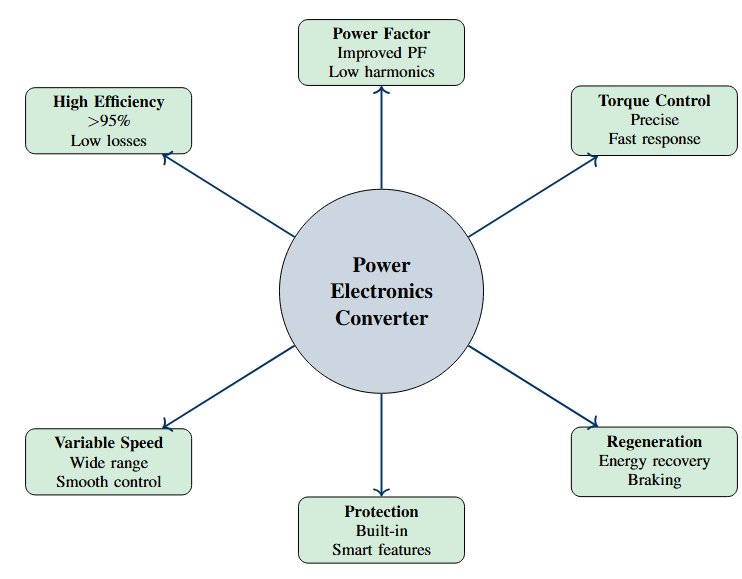

Power Electronics: The Enabling Technology

Why Power Electronics is Critical Power electronics enables:

The Bridge Power electronics acts as the intelligent interface between:

Fixed Power Source \(\xrightarrow{\text{Converter}}\) Variable Speed Motor

What Makes Modern Drives "Solid State"?

Old Technology:

  • Mechanical contactors

  • Rheostats (variable resistors)

  • Rotating machines (Ward-Leonard)

  • Moving parts, wear and tear

  • Slow switching

  • Sparking and arcing

Solid State Technology:

  • Power semiconductor devices

  • No moving parts

  • Fast switching (kHz)

  • No wear (long life)

  • Silent operation

  • Compact size

Key Power Devices

Impact of Power Electronics on Drive Performance

Impact of Power Electronics on Drive Performance

Bottom Line Power electronics transformed electric drives from inefficient, inflexible systems to high-performance, intelligent solutions.

Summary and Looking Ahead

Summary: Key Takeaways

  1. Electric drives convert electrical energy to controlled mechanical motion using electric motors as prime movers

  2. Historical evolution shows dramatic improvement from Ward-Leonard (\(<\)60% efficient) to modern solid-state drives (\(>\)95% efficient)

  3. Advantages: High efficiency, precise control, environmental benefits, low maintenance, wide applicability

  4. Limitations: Power supply dependency, weight issues for mobile applications, lower power-to-weight ratio

  5. Three configurations: Group drive (obsolete), Individual drive (common), Multimotor drive (automation)

  6. Power electronics is the enabling technology that makes modern drives possible
