Electrical Machines · Chapter 79

Starting Methods

Part 5 · Synchronous Machines — bring the rotor close to synchronous speed by a pony motor or by induction action, then switch on the field and let it pull in.

Prof. Mithun Mondal Engineering Devotion Digital Textbook
i Learning Objectives

By the end of this chapter you should be able to:

  • Describe starting by an auxiliary (pony) motor and choose its number of poles.

  • Describe starting by a damper winding (induction-motor starting) and the precautions with the field winding.

  • Outline other methods: reduced-voltage and variable-frequency starting.

Demonstrative Video

Section 79-1

Why a Starting Method Is Needed

A synchronous motor has zero average torque at standstill. It must be brought close to synchronous speed by other means before the DC field is applied. The rotor then pulls into step with the rotating field. The two usual methods are an auxiliary motor and a damper winding.

Section 79-2

Starting by an Auxiliary (Pony) Motor

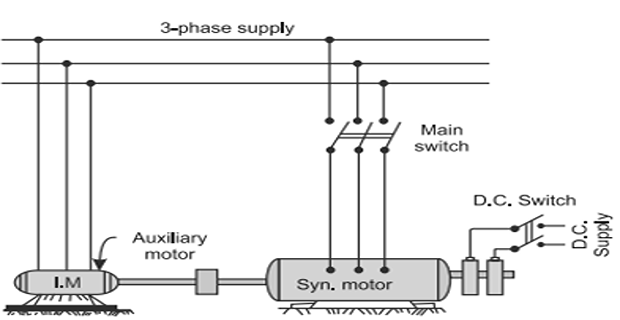

Synchronous motor started by a pony motor
A small induction (pony) motor on the same shaft.
  1. A small induction motor, the pony motor, is coupled to the synchronous motor shaft.

  2. The pony motor is started first and brings the synchronous rotor close to \(N_s\).

  3. The main three-phase switch and then the DC field switch of the synchronous motor are closed. The rotor poles pull into synchronism with the stator field.

  4. The pony motor's supply is then disconnected. It runs idle and becomes a small load on the main motor.

Choosing the pony motor. An induction motor always runs below its own synchronous speed. To reach the synchronous motor's \(N_s\), the pony motor should have the same number of poles, or preferably one pair of poles fewer, so that its slip speed still lies above the target.

This method suits motors started on light load, because the pony motor is small.

1 Worked Example — Pony motor poles

Problem. An 8-pole, 50 Hz synchronous motor is to be started by a pony motor. Compare a 6-pole and an 8-pole induction motor for this duty.

\[N_s(\text{SM}) = 750\ \text{rpm}, \qquad N_s(\text{6-pole IM}) = 1000\ \text{rpm}\]

An 8-pole pony motor would reach only about 730 rpm, below 750 rpm. A 6-pole motor can easily take the shaft to 750 rpm, after which the field is applied and the drive is released.

Section 79-3

Starting by a Damper Winding

This is the most common method. The motor is started as a squirrel-cage induction motor, using the damper winding on its rotor.

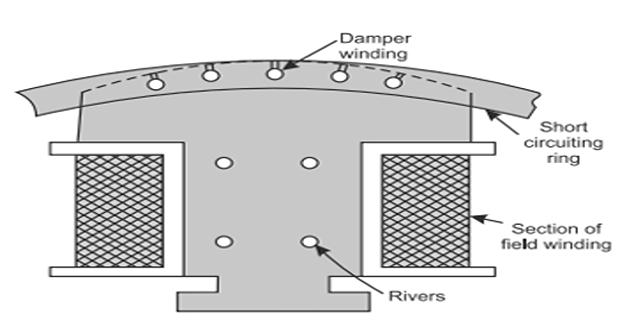

Damper winding used for starting
Damper (amortisseur) bars in the pole faces, short-circuited by end rings.
  • In salient-pole machines, copper bars are embedded in slots in the pole shoes and brazed to end rings. In non-salient machines, the bars are placed in the rotor slots above the field winding.

  • When the three-phase supply is switched on, the rotating field induces currents in the damper bars, and the rotor accelerates as an induction motor.

  • During run-up, the field winding is short-circuited through a discharge resistor. This prevents very high voltages being induced in its many turns.

  • When the rotor is close to synchronous speed (it can never reach it as an induction motor), the DC field is applied. The rotor poles pull into step and the motor runs synchronously. The damper winding then carries no current.

⟳
Pull-In Condition
The closer the rotor is to \(N_s\) when the field is applied, and the lighter the load, the more easily the motor pulls into synchronism.

To limit the starting current, the stator may be supplied at reduced voltage through an autotransformer or a star–delta switch, as with induction motors.

Section 79-4

Other Methods

  • Variable-frequency starting: an inverter raises the supply frequency gradually from zero, so the rotor stays in step throughout. This is common in modern drives.

  • Starting as a slip-ring induction motor: some machines have a wound rotor that is started with external resistance and then supplied with DC.

Section 79-5

Chapter Review

Multiple-Choice Questions
  1. MCQ 1. During induction-motor starting of a synchronous motor, the field winding is
    (a) open-circuited (b) short-circuited through a resistor (c) fed with DC (d) fed with AC

    Show answer
    (b) short-circuited through a resistor.
  2. MCQ 2. A pony motor for a 10-pole synchronous motor should preferably have
    (a) 12 poles (b) 10 poles (c) 8 poles (d) 2 poles

    Show answer
    (c) 8 poles, one pair fewer.
Conceptual Questions
  1. Why must the field winding not be left open-circuited during starting?

  2. Why can a synchronous motor never reach synchronous speed by induction action alone?
